Vertical Roller Mill Grinding Roller

High Wear Resistance

Durable high chromium cast iron vertical roller mill grinding roller for extended service life and reduced cement plant maintenance costs.

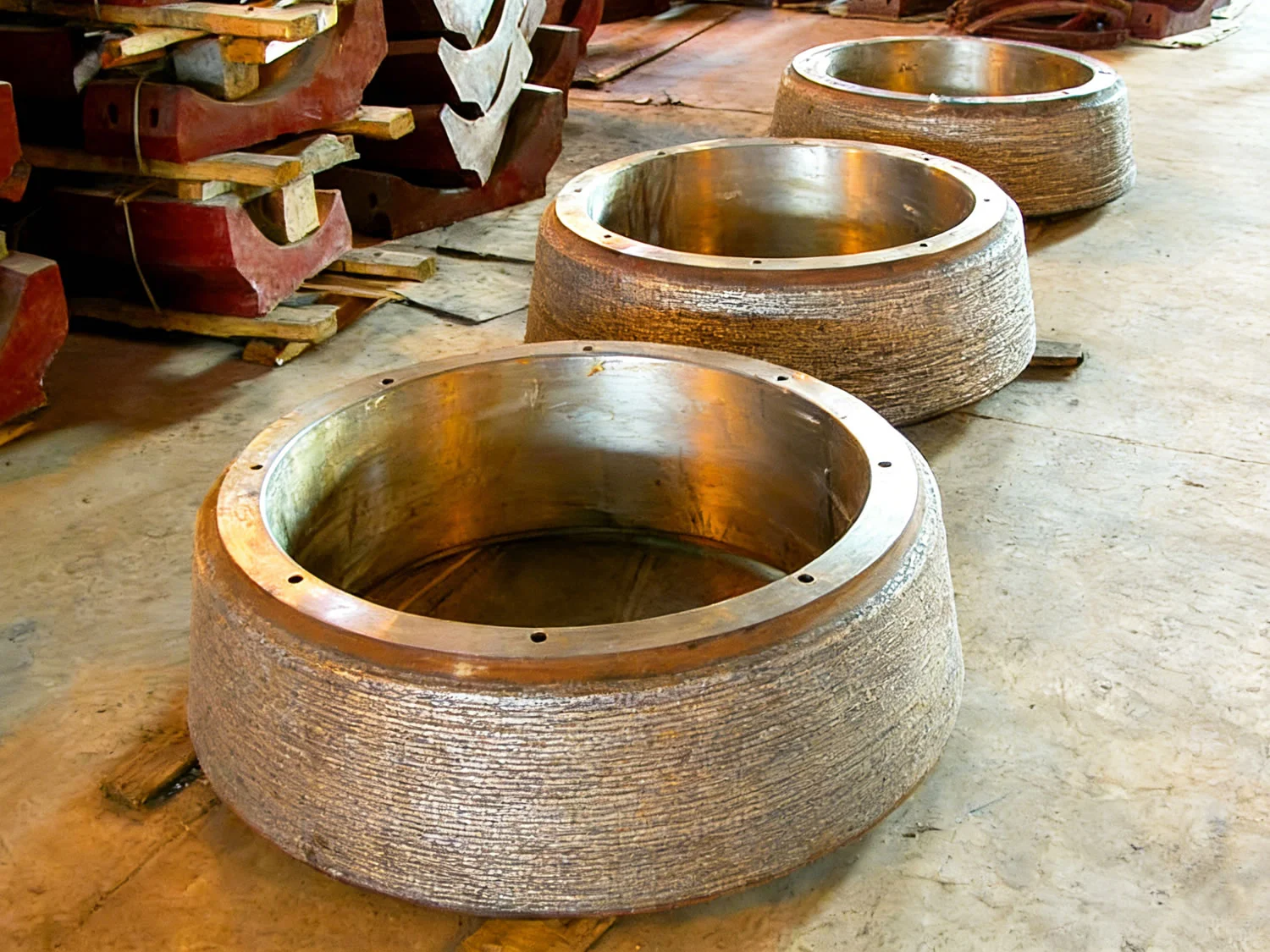

Vertical Roller Mill Grinding Ro High Chromium Grinding Roller Wear Resistant VRM Roller Cement Mill Grinding Components +2 More

Download

Vertical Roller Mill Grinding Roller

High Wear Resistance

Durable high chromium cast iron vertical roller mill grinding roller for extended service life and reduced cement plant maintenance costs.

Download

The Vertical Roller Mill Grinding Roller is a critical wear part in vertical roller mills (VRM), essential for efficient grinding of cement raw meal, clinker, coal powder, and slag. Manufactured with advanced materials like high chromium cast iron or hardfaced alloys, our grinding rollers deliver exceptional durability, optimizing the grinding process while minimizing downtime and operational expenses in modern cement plants.

Features & Benefits

Our high chromium grinding roller stands out with superior performance characteristics:

High hardness and excellent wear resistance (abrasion resistance equivalent)
Strong crack resistance under heavy loads

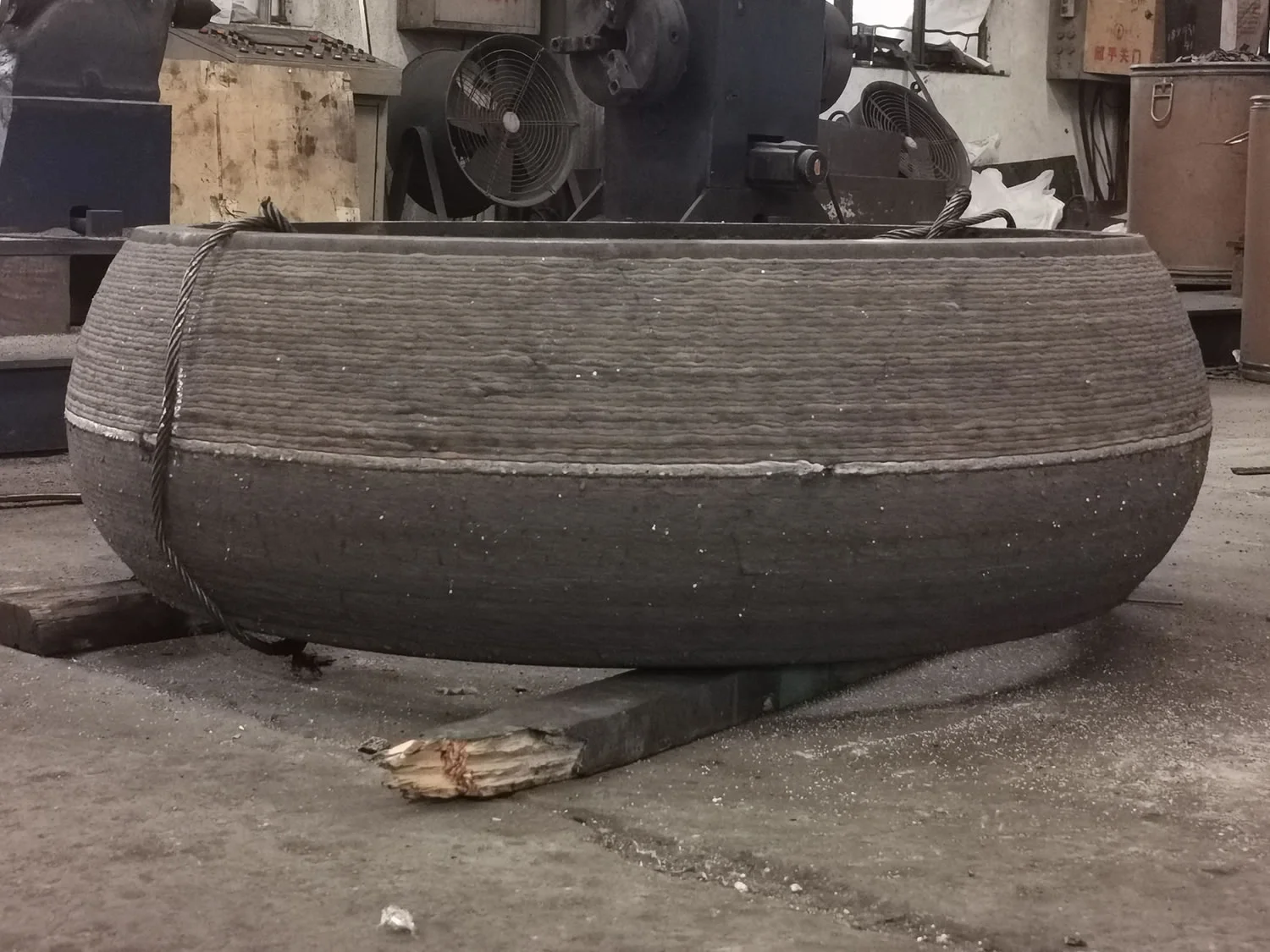

Hardfacing layer (15-20mm thick, HRC 56-60) for extended longevity
Smooth surface finish via electric arc air gouging

Customizable materials (e.g., ASTM 1030, GS-30Mn4, or 42CrMo forged base)
Conical or wheel designs for optimized pressure and output stability
Reversible segments for maximized material utilization
Up to 2x service life compared to standard rollers, reducing replacement frequency

These features ensure reliable operation, lower energy consumption, and significant cost savings in high-volume cement production.

Technical Specifications

Parameter	Details
Material Options	High Chromium Cast Iron, Hardfaced (42CrMo base), Ceramic Composite
Hardfacing Hardness	HRC 56-60
Wear Layer Thickness	15-20 mm (hardfaced type)
Service Life Benefit	Extended up to 2x standard rollers
Compatibility	Customized to customer drawings or VRM models (e.g., Loesche, Pfeiffer, Polysius)
Condition	Brand New
Quality Assurance	Process inspection + stress surface checks before shipment

Vertical Roller Mill Grinding Roller - Common Material Types

Vertical Roller Mill Grinding Roller, are manufactured using different material compositions depending on the application, operating conditions, and performance requirements:

Composite Cast Structure

Often ceramic block inlaid roller sleeves, consisting of three layers: ductile iron (base), high-chromium cast iron (intermediate), and wear-resistant ceramic blocks (outer layer). This design balances high hardness with excellent toughness.

High-Hardness Cast Iron

Includes Ni-hard cast iron and high-chromium cast iron, achieving hardness above 58 HRC. Offers strong wear resistance but lower toughness, with potential for cracking under heavy impact.

Alloy Cast Steel

Such as ZG30Mn cast steel, optimized for improved hardness and wear resistance. Many undergo arc gouging finishing and non-destructive testing (ultrasonic, magnetic particle, dye penetrant) to ensure quality and extend service life.

Bimetal Centrifugal Casting

Outer layer uses alloy cast iron for high hardness and wear resistance, while the inner layer is gray cast iron for toughness and vibration absorption. The roller shaft is typically made of high-quality 45# carbon structural steel, assembled with interference fit for a strong, integrated structure.

Grinding Principle

Both vertical roller mills and roller presses operate based on the principle of material bed milling, ensuring efficient grinding through particle-to-particle interaction rather than direct metal contact.

Material Bed Milling Principle

During the grinding process, only a small portion of material particles directly contact the grinding components. Under applied pressure, the particles form a stable material bed. Through stress transmission and interaction between particles, the material is cracked, broken, and finely ground, resulting in high efficiency and reduced component wear.

Vertical Roller Mill Grinding Mechanism

In a vertical roller mill, the grinding components consist of rollers and a grinding disc. The grinding pressure is mainly generated by the rollers and is typically applied through a hydraulic loading system.

Material is fed onto the grinding disc from the center or side of the upper housing. As the disc rotates, a uniform material layer is formed. When the material passes between the rollers and the grinding disc, it is ground under combined extrusion and shear forces.

Roller Press Grinding Mechanism

A roller press uses two rollers of equal size as the grinding components. Material falls vertically from the top and forms a compact material bed between the rollers. Under the high extrusion force applied by the rollers, the material is compressed and ground into fine particles.

Roller presses are available in two drive configurations: double drive and single drive. The double drive roller press, where both rollers are independently driven, is the most commonly used design. In a single drive configuration, one roller is motor-driven, while the second roller is driven via a gear transmission.

Vertical Roller Mill Grinding Roller

Design Structure

There are fundamental differences between the design structures of vertical roller mills and roller presses, which directly influence grinding efficiency, energy utilization, and product fineness.

Vertical Roller Mill: The material on the grinding disc is restricted by the air duct ring, while the material between the roller and the disc is not laterally confined. The mill typically uses two or more grinding rollers, creating a large contact area between the rollers and the grinding disc. Materials are ground repeatedly on the disc, resulting in higher energy utilization efficiency.
Roller Press: In addition to the restriction between the two rollers, side baffles are installed at both ends of the rollers, fully confining the material bed. This all-around restriction allows increased applied energy to significantly raise fine powder content and specific surface area, making the roller press superior in terms of material fineness growth.
Grinding Characteristics: The roller press features a small contact area between rollers and material, but achieves a large grinding ratio, allowing materials to be ground effectively in a single pass. In contrast, vertical mills rely on repeated grinding cycles, offering more stable operation and higher overall energy efficiency.
Performance Comparison: From the perspective of fineness increase and specific surface area, the roller press shows clear advantages. From the standpoint of energy utilization and repeated grinding, the vertical roller mill demonstrates superior performance.
