Hardfaced Alloy Plates For Boiler Pipe Lining And Erosion Resistance In Industrial Wear Zones
Wear-resistant hardfacing liner plates deliver elite abrasion and corrosion defense for boiler linings and pipelines, overlaid with crc alloys for 5x longer life against erosive slurries, impacts, and chemicals up to 650°c.
Hardfaced Alloy Plates For Boiler Pipe Lining And Erosion Resistance In Industrial Wear Zones
Wear-resistant hardfacing liner plates deliver elite abrasion and corrosion defense for boiler linings and pipelines, overlaid with crc alloys for 5x longer life against erosive slurries, impacts, and chemicals up to 650°c.

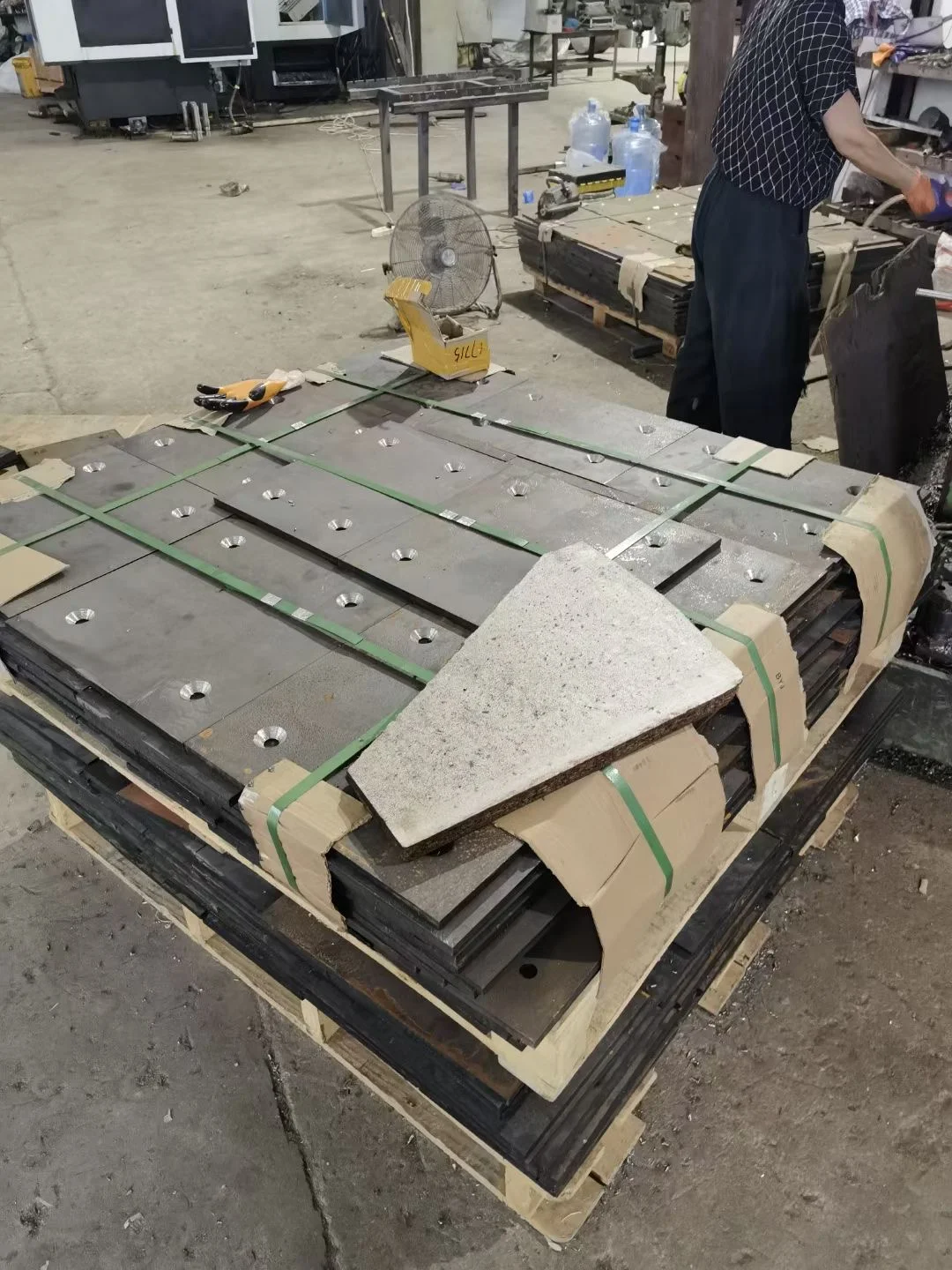

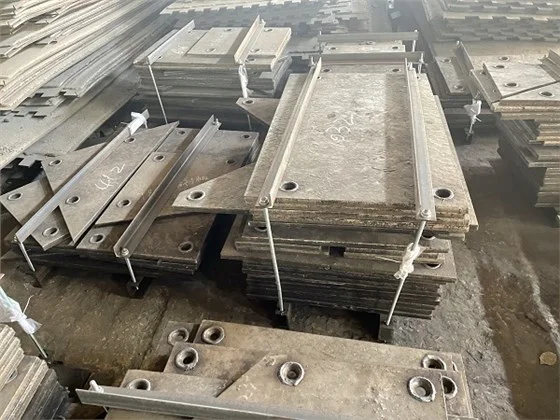

Wear-Resistant Hardfacing Liner Plates redefine durability in high-abrasion environments, layering premium chromium carbide (CrC) or tungsten carbide overlays onto mild steel or alloy bases to furnish ironclad boiler pipe protection and pipeline corrosion protection from the ravages of particulate bombardment, corrosive fluxes, and thermal attrition. The hardfacing process—via open-arc welding, plasma transfer, or submerged arc—deposits 3-12mm thick claddings with 60-65 HRC hardness, embedding M7C3 carbides that pulverize silica sands, fly ash, or clinker dust, outperforming AR500 steel in longevity for chutes, hoppers, and pipe interiors up to 40 m/s impact velocities and 600°C service.

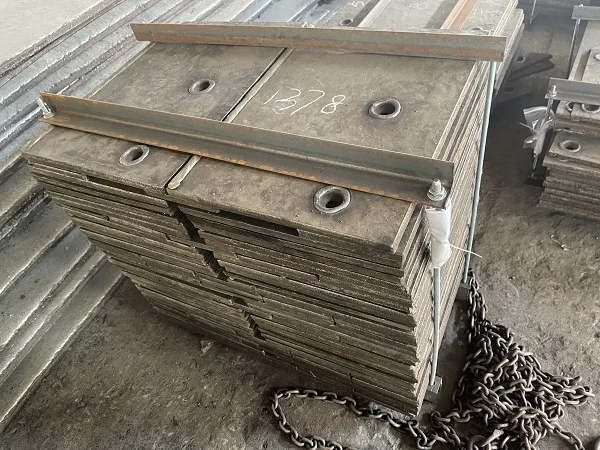

These corrosion resistant plates confront frontline threats like boiler pipe grinding in ash silos, sulfuric pitting in FGD chambers, and galvanic erosion in wet scrubbers, syncing with queries for "industrial pipeline protection solutions" or "boiler corrosion resistant fittings." Their metallurgical bond (shear strength >200 MPa) defies delamination under flexure or vibration, while the ductile substrate absorbs shocks, preventing brittle fractures. In coal-fired plants, they line cyclone separators against unburnt char; in quarries, they shield conveyor skirts from aggregate spillage; and in steel mills, they endure slag splatter at 1200°C intermittent exposure, frequently tripling MTBF over bare plates.
Aligned with ASTM A532 for white irons, AWS C5.13 for hardfacing, and ISO 5817 for weld quality, erosion resistant liners flex to specs: thicknesses 6-25mm, widths up to 3m, lengths 6-12m (cut-to-fit), and curvatures for pipe segments (R=500-2000mm). Attachment via countersunk studs, plug welds, or adhesives suits retrofits, with chamfered edges to curb turbulence and edge buildup—crafted for 30% less drag in pneumatic lines. Post-weld stress relief (PWHT at 550°C) and optional duplex stainless bases enhance pitting resistance (PREN >35), while machined surfaces (Ra 6.3μm) promote uniform wear.
Vital traits: overlay dilution 8J—igniting long-tail sparks like "wear-resistant hardfacing liner plates for boiler erosion resistance" or "CrC abrasion resistant liners PN20." In dredging ops, they tame seabed gravel; in pharma blending, they resist API particle shear; and in wastewater, they foil grit corrosion, corroborated by ASTM G40 erosion metrics (
For maintainers pursuing "boiler pipeline wear solutions," these hardfacing plates harvest ROI through 70% cutbacks in outages, weld-repairable designs for spot fixes, and eco-friendly low-Mo alloys. Team with ceramic inserts or bend guards for armored networks. Snag wear pattern simulators or pallet quotes to harden your liners versus abrasive adversaries.
The mirror wear-resistant liner for chute adopts advanced production technology, giving it extremely high wear resistance and impact resistance. During material conveying, it can effectively resist material wear and impact, extending the service life of equipment. Compared with traditional liner materials, the service life of the mirror wear-resistant liner for chute can usually be increased several times, greatly reducing the frequency of liner replacement.
This designed liner features a smooth surface with a low friction coefficient, allowing materials to slide smoothly during conveying. It reduces equipment failures caused by material blockage and adhesion. This provides significant advantages for industries dealing with sticky materials, such as the manufacturing industry of mirror wear-resistant liners for chutes.
| Property | Hardfacing Plate Perk | Operational Win |
|---|---|---|
| Abrasion Toughness | 62 HRC, 30% carbide loading | 6x endurance in fly ash hoppers |
| Impact Resilience | Ductile base, no chipping | Withstands 25m/s coal drop unscratched |
| Corrosion Fortification | Cr 28%, PREN 40+ in overlays | Pit-free in acidic flue gas for 5 years |
| Adhesion Integrity | >250 MPa bond, flex-tolerant | Zero peel in vibrating chutes |
Certified by domestic authoritative institutions, its Rockwell hardness reaches HRA80-90 — second only to diamond, far exceeding the wear resistance of wear-resistant steel and stainless steel.
Tested to have 266 times the wear resistance of manganese steel and 171.5 times that of high-chromium cast iron. Extends equipment service life by more than 10 times under the same conditions.
With a density of 3.8g/cm³, only half that of steel, it significantly reduces equipment load.
Adopts high-temperature resistant strong adhesive, enabling long-term operation at 350°C without aging. Industry-leading adhesive performance.
