- Universal Solutions For Pipe-to-flange Connections

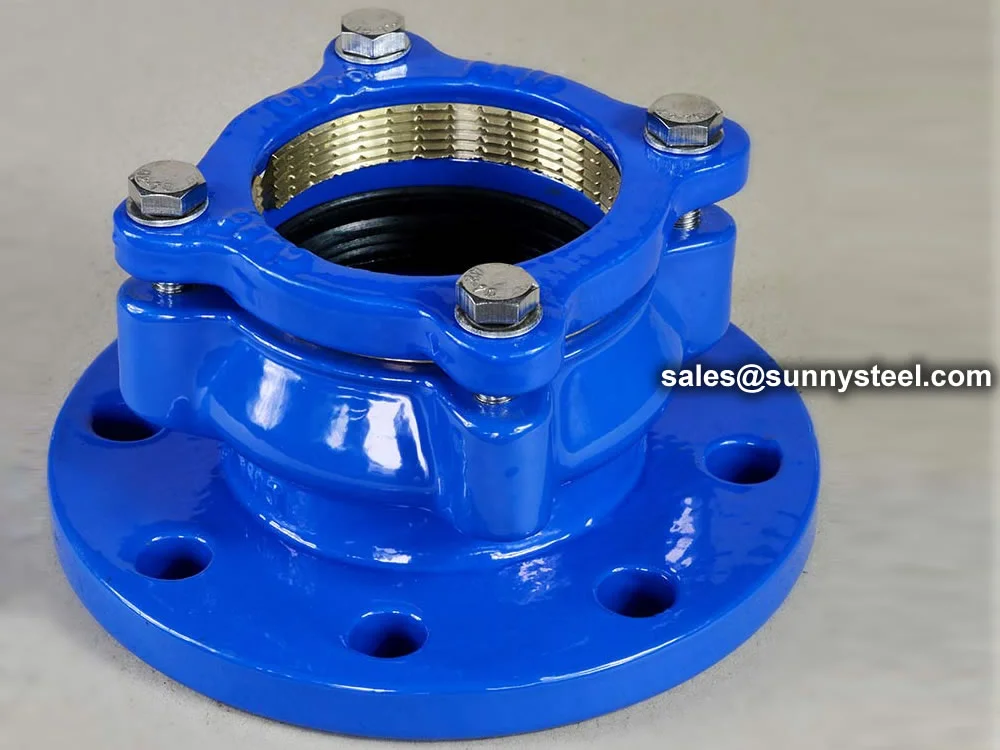

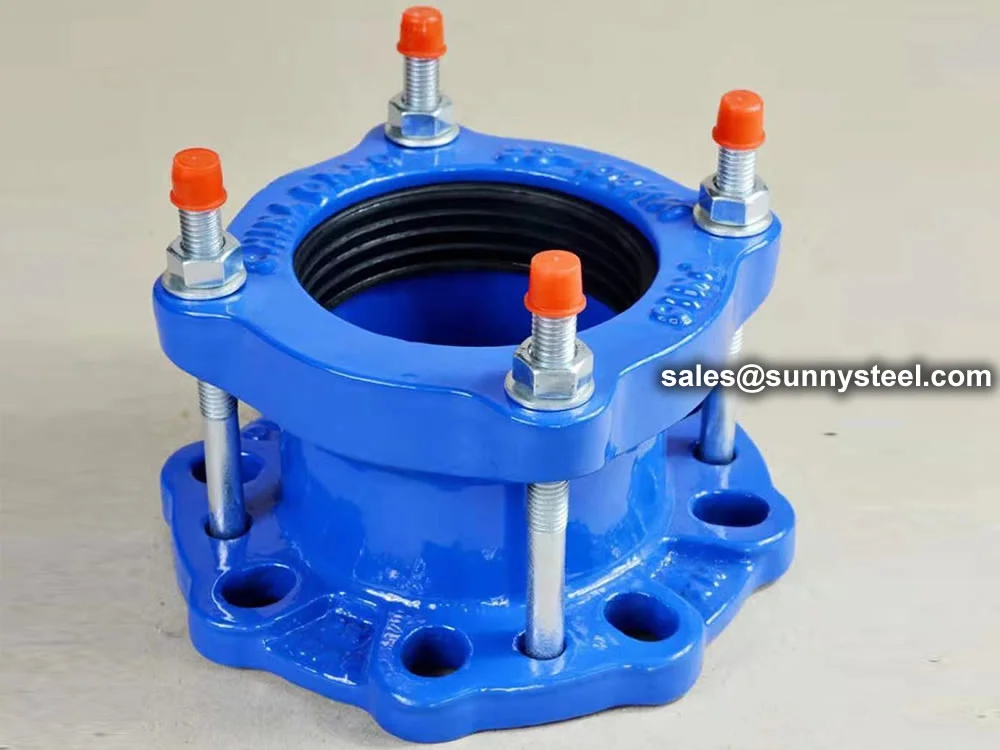

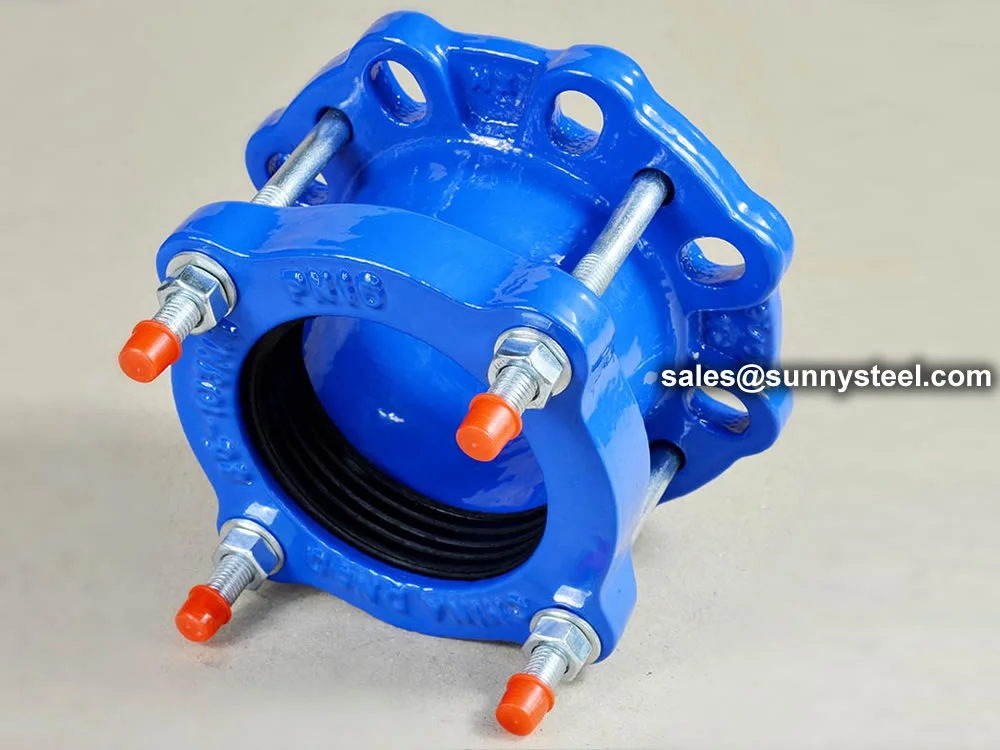

Flange adaptors provide quick, reliable joining of plain end pipes to flanged valves, pumps, fittings, and meters.
Flange adaptors enable easy assembly/disassembly of pipeline equipment in field installations where standard threaded flanges are costly or time-consuming. They compensate for axial displacement, deflection, and eccentricity while providing secure, leak-tight connections.
Ideal for pumped sewerage, water, oil, gas, and powder transport. For PE pipes, use with pipe inserts.

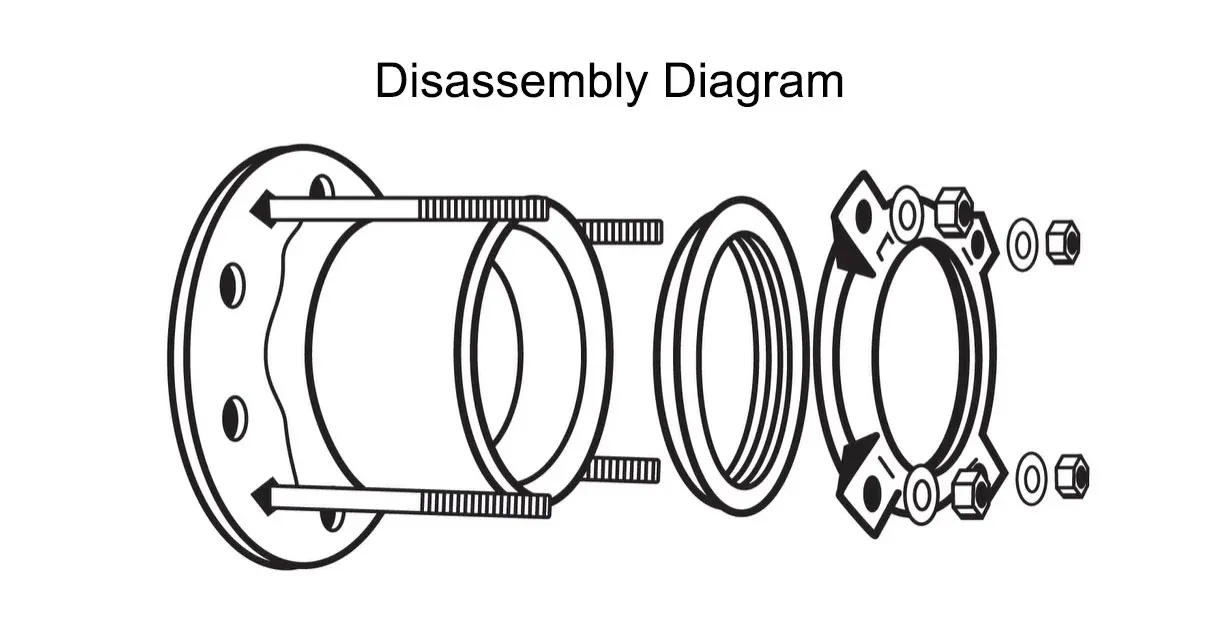

When installed, tightening the clamping bolts compresses the gasket against the pipe, creating a secure, leak-proof seal. The flange end then connects to the mating flanged component, allowing for easy assembly and disassembly without cutting or welding.
Flange adaptors and universal couplings are both used to connect pipes of different types or sizes, but they differ in their structure and working principle.
| Feature | Flange Adaptor | Universal Coupling |
|---|---|---|
| Main Function | Connects a flanged end to a plain-end pipe | Connects two plain-end pipes (which may have different diameters) |
| Typical Application | Connecting valves or pumps to pipelines | Connecting straight sections of pipe |
| Sealing Method | Flange gasket + pipe-end compression seal | Double-ended compression seal |
| Bolt Connection | Flange bolts on one side only | Clamping bolts on both sides |
At Sunny Steel, we are guided by three fundamental core values that shape our approach and drive our success.
Flange adapters allow for the connection of different types of flanges, such as ANSI, DIN, or JIS flanges, enabling compatibility between different flange standards. This versatility makes it easier to connect and integrate various components and piping systems.
Flange adapters provide flexibility in adapting flanged components to non-flanged equipment or systems. They allow for the connection of flanged pipes to valves, pumps, or other equipment that may not have flanged ends, eliminating the need for extensive modifications or welding.
Flange adapters simplify the installation and removal process compared to welding or other permanent joining methods. They can be easily aligned and bolted together, reducing downtime during maintenance or repairs.
The use of gaskets or sealing elements with flange adapters ensures a tight and leak-proof connection between flanged components. This helps prevent fluid or gas leakage, promoting safety and efficiency in the piping system.
Flange adapters can be a cost-effective solution compared to welding or using custom-made flanged components. They eliminate the need for complex fabrication, reduce labor costs, and enable faster installation and disassembly.
Flange adapters are typically made from sturdy and corrosion-resistant materials, ensuring long-lasting performance and reliability in demanding environments. They can withstand high pressures, temperature variations, and chemical exposures.
Flange adapters allow for modular construction and easy reconfiguration of piping systems. They can be easily disconnected and reused, offering flexibility in system design, modification, or expansion.
SUNNYSTEEL
The use of Flange adaptor helps in simplifying the installation and removal of the following
Pump stations, sewage treatment plants, water treatment plants and other more applications use flange adaptors.
