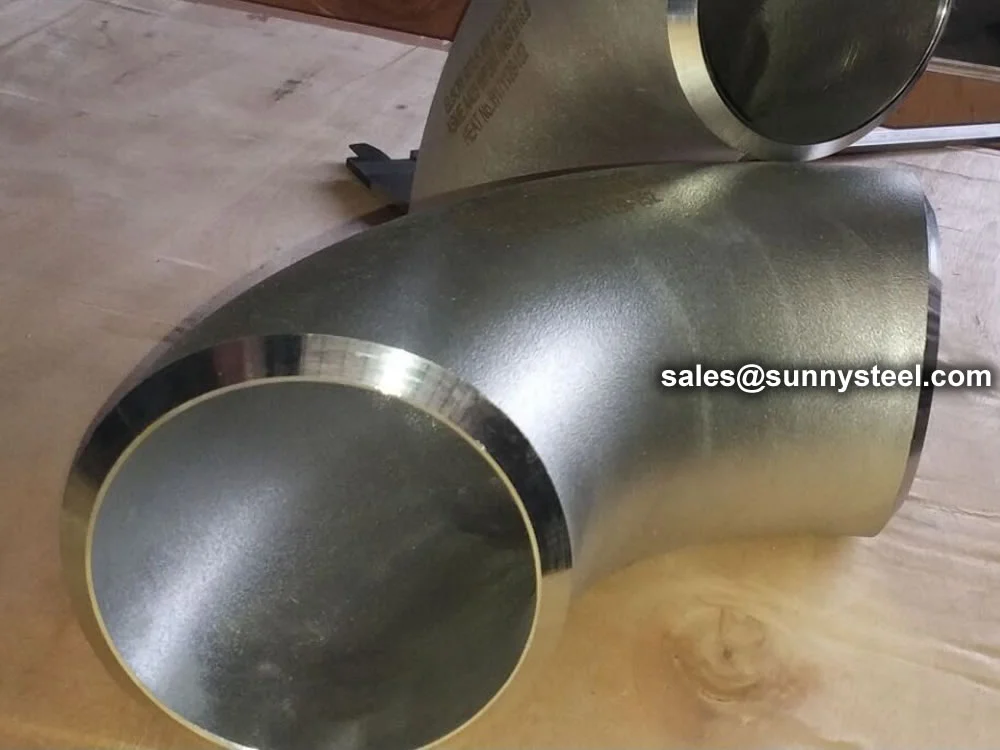

Stainless Steel Elbows for Corrosion-Resistant Piping Solutions

Stainless Steel Elbows are high-performance pipe fittings designed for corrosion-resistant and industrial piping systems, compliant with ASTM A403 and ASME B16.9 standards. Available in grades like WP304 and WP316, these seamless or welded elbows offer exceptional corrosion resistance and erosion resistance, making them ideal for boiler pipeline protection in industries such as food processing, marine, pharmaceuticals, and petrochemical plants.

Stainless steel elbows are manufactured through hot-forming or cold-forming processes, ensuring durability and strength at temperatures up to 870°C. With high chromium (18-20% for WP304, 16-18% for WP316) and nickel content, they provide superior resistance to corrosion, oxidation, and chemical degradation in harsh environments. Available in long-radius (LR, R=1.5D), short-radius (SR, R=1D), and reducing configurations, these elbows support angles of 90°, 45°, and 22.5° for versatile industrial piping designs.

These elbows support welding, bending, and flanging, with excellent weldability due to low carbon content (e.g., WP304L, WP316L). Available in sizes from 1/2” to 24” (DN15 to DN600) and wall thicknesses from SCH 10 to SCH 160, they meet diverse pipeline requirements. Rigorous testing, including tensile, flattening, and hydrostatic tests, ensures compliance with ASTM A403 standards for high-performance service.

Stainless steel elbows can be polished or coated (e.g., FBE, 3LPE) to enhance corrosion resistance, protecting against rust and chemical attack in demanding environments. Their hygienic properties and durability make them ideal for boiler pipeline protection in food processing, marine applications, and high-temperature petrochemical systems.

For engineers seeking reliable corrosion-resistant piping solutions, stainless steel elbows deliver unmatched performance, safety, and longevity, addressing challenges like pipeline corrosion, chemical exposure, and high-temperature demands.

Chemical Composition of ASME SA335 P91 Elbow
Element	Composition (%)
Carbon (C)	0.08-0.12
Manganese (Mn)	0.30-0.60
Phosphorus (P)	≤0.020
Sulfur (S)	≤0.010
Silicon (Si)	0.20-0.50
Chromium (Cr)	8.00-9.50
Molybdenum (Mo)	0.85-1.05
Vanadium (V)	0.18-0.25
Nitrogen (N)	0.030-0.070
Nickel (Ni)	≤0.40
Aluminum (Al)	≤0.04

Mechanical Properties of ASME SA335 P91 Elbow
Property	Value
Tensile Strength, min (MPa)	585
Yield Strength, min (MPa)	415
Elongation, min (%)	20 (Longitudinal)
Hardness, max (HBW)	250

Comparison of ASME SA335 P91 Elbow with Other Fittings
Feature	ASME SA335 P91 Elbow	ASTM A234 WPB Elbow	ASTM A403 WP304 Elbow
Material Type	Alloy Steel	Carbon Steel	Stainless Steel
Temperature Range	High (up to 650°C)	Moderate (-29°C to 425°C)	High (up to 870°C)
Corrosion Resistance	Excellent (High Cr/Mo/V)	Moderate	Superior (Austenitic)
Erosion Resistance	Excellent	Good	Moderate
Creep Strength	Superior	Moderate	Good
Applications	Power Plants, Petrochemical, Refineries	General Piping, Boilers	Food Processing, Marine
Key Advantage	Superior creep strength	Cost-effective strength	Superior corrosion resistance

Alloy Composition Analysis & Application Notes

• Alloy System Identification: The primary alloys listed are 1.25% chromium-0.5% molybdenum (1.25Cr-0.5Mo) steels, classified under ASTM A335 as Grade P11, with carbon content typically 0.10-0.20% (not explicitly shown). These are low-alloy steels designed for high-temperature service (up to 540°C).
• Key Element Roles: - Chromium (1.06-1.30%): Enhances oxidation resistance and forms chromium carbides for creep strength; - Molybdenum (0.48-0.53%): Strengthens the ferrite matrix and improves high-temperature creep resistance; - Trace Elements (V, Co, Cu): Present in minor amounts (<0.2%), with vanadium potentially contributing to carbide strengthening.
• Grade Equivalences: - 1.25Cr-0.5Mo (P11) corresponds to DIN 13CrMo4-5 and EN 10216-2 13CrMo4-5; - C-0.5Mo (P1) is equivalent to DIN 15Mo3 and EN 10216-2 16Mo3 (lower chromium, higher carbon).
• Industrial Applications: Suitable for high-temperature piping in power generation (boiler tubes, superheaters), petrochemical plants (hydrocracking units), and refineries, where resistance to creep and oxidation is critical.
• Variability Note: Composition ranges reflect manufacturing tolerances. The slight variations in element percentages (e.g., Cr 1.06-1.30%) remain within ASTM A335 specification limits, ensuring consistent mechanical properties.

Comparison of ASTM A234 WP11 Elbow with Other Fittings
Feature	ASTM A234 WP11 Elbow	ASTM A234 WPB Elbow	ASTM A403 WP304 Elbow
Material Type	Alloy Steel	Carbon Steel	Stainless Steel
Temperature Range	High (up to 620°C)	Moderate (-29°C to 425°C)	High (up to 870°C)
Corrosion Resistance	Good (Cr/Mo Content)	Moderate	Superior (Austenitic)
Erosion Resistance	Good	Good	Moderate
Creep Strength	Good	Moderate	Good
Applications	Boilers, Petrochemical, Refineries	General Piping, Boilers	Food Processing, Marine
Key Advantage	High-temp creep resistance	Cost-effective strength	Superior corrosion resistance

Key Benefits

Corrosion Resistance

High Cr/Mo/V content protects against oxidation and chemical degradation.

Erosion Resistance

Durable alloy steel withstands wear from abrasive slurries.

High-Temperature Strength

Excels in conditions up to 650°C with superior creep resistance.

Weldability

Supports welding for secure pipeline configurations.

Cost-Effective

Long lifespan reduces maintenance in high-temperature systems.

Versatile Configurations

Available in LR, SR, and reducing designs for diverse applications.

You Can Also Search ASME SA335 P91 Elbows by

A curated list of long-tail keywords for ASME SA335 P91 elbows, covering specifications, applications, and material properties.

Standards and Specifications

• ASME SA335 P91 elbow standards
• ASME B16.9 P91 elbow specifications
• High-temperature P91 elbow properties
• Industrial piping P91 elbow standards

Applications

• ASME SA335 P91 elbows for boiler pipeline protection
• P91 elbows for petrochemical industry
• Industrial piping P91 elbows for oil and gas
• High-temperature P91 elbows for power plants
• Corrosion-resistant P91 elbows for refineries

Material and Grades

• ASME SA335 P91 elbow material
• Corrosion-resistant P91 elbow grades
• High-temperature P91 elbow properties

Manufacturing and Testing

• ASME SA335 P91 elbow manufacturing process
• P91 elbow non-destructive testing
• Corrosion-resistant P91 elbow heat treatment
• Industrial piping P91 elbow quality testing

Procurement and Suppliers

• ASME SA335 P91 elbow suppliers
• Boiler pipeline protection P91 elbow distributors
• Corrosion-resistant P91 elbow price

Dimensions and Customization

• ASME SA335 P91 elbow dimensions
• Industrial piping P91 elbow tolerances
• Custom seamless P91 elbow sizes

Note: ASME SA335 P91 covers alloy steel elbows for high-temperature and corrosion-resistant applications. Contact a certified supplier for detailed specifications.

An ASME SA335 P91 elbow is an alloy steel pipe fitting designed for high-temperature piping systems, offering corrosion resistance and superior creep strength up to 650°C. It is ideal for boiler pipeline protection in industrial piping.

ASME SA335 P91 is an alloy steel grade with high Cr/Mo/V content for superior corrosion resistance and creep strength at high temperatures (up to 650°C). ASTM A234 WPB is a carbon steel grade for moderate temperatures (-29°C to 425°C) with lower cost but less high-temperature performance.

P91 elbows are available in 90°, 45°, and 22.5° angles, with 60° and 120° options for specialized industrial piping systems, ensuring flexibility in high-temperature applications.

A reducing P91 elbow connects pipes of different diameters, available in LR (R=1.5D) or SR (R=1D) configurations. It ensures corrosion resistance and high-temperature performance in complex industrial piping layouts.

ASME SA335 P91 elbows are made from alloy steel with high chromium (8.00-9.50%), molybdenum (0.85-1.05%), and vanadium (0.18-0.25%) for enhanced corrosion resistance and creep strength in high-temperature industrial piping.

P91 elbows are produced via hot-forming or cold-forming, followed by normalizing and tempering to ensure corrosion resistance and strength for high-temperature piping.

Quality is ensured through: - Back Arc Thickness: Measured with a thickness gauge to detect thinning.
- Dimensional Checks: Inner/outer diameters and center height.
- Radiographic Inspection: Detects defects like pores or slag inclusions.
- Testing: Tensile, flattening, and hydrostatic tests per ASME SA335.

P91 elbows offer superior creep strength and corrosion resistance at high temperatures (up to 650°C), making them ideal for boiler pipeline protection in demanding industrial piping applications.

Coatings include: - Light oiling
- Black painting
- FBE coating
- 3LPE coating
- Hot-dip galvanizing
These enhance corrosion resistance for boiler pipeline protection.

Calculate the back arc length: L = D * 3.14 (D = pipe diameter). For alloy steel: Weight (kg) = (D * a * 0.02466 * L) / 1000, where a is wall thickness. This ensures accurate sizing for industrial piping.

Stainless Steel Elbow Standard Specifications

Chemical Composition of Stainless Hollow Sections (Grades 304, 304L, 316, 316L per ASTM A554/A312)
Grade	C (% max)	Mn (% max)	Si (% max)	P (% max)	S (% max)	Cr (%)	Ni (%)	Mo (%)	N (% max)
304	0.08	2.00	1.00	0.045	0.030	18.0-20.0	8.0-11.0	-	0.10
304L	0.03	2.00	1.00	0.045	0.030	18.0-20.0	8.0-12.0	-	0.10
316	0.08	2.00	1.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0	0.10
316L	0.03	2.00	1.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0	0.10

The low carbon content in 304L and 316L enhances weldability, while molybdenum in 316 and 316L improves resistance to pitting and crevice corrosion, making Stainless Steel Elbow ideal for harsh environments.

Mechanical Properties of Stainless Hollow Sections (Grades 304, 304L, 316, 316L per ASTM A554/A312)
Grade	Tensile Strength (min, MPa)	Yield Strength (min, MPa)	Elongation (min, %)	Hardness (max, HB)	Hardness (max, HRB)
304	515	205	40	201	92
304L	485	170	40	201	92
316	515	205	40	217	95
316L	485	170	40	217	95

These mechanical properties make Stainless Steel Elbow suitable for applications requiring high strength and corrosion resistance, such as architectural structures, marine environments, and chemical processing.

Comparison table of stainless steel brands of various countries

In order to solve the cumbersome and difficult to remember stainless steel grades, improve the practicability of the brand representation, and the contrast with the international standard grades, China has formulated the "Universal Code System for Steel and Alloy Grades", such as 06Cr19Ni10, corresponding to 304. Different grades of stainless steel have different ingredients, but they all have a national standard. The standards of each country are also different.

Stainless Steel Grade Equivalents Across Standards
No	China (GB)		Japan (JIS)	American		Korea (KS)	EU (BS EN)	India (IS)	Australia (AS)	Taiwan (CNS)
No	Old	New (07.10)	SUS	ASTM	UNS	STS	EN	IS	AS	CNS
Austenitic Stainless Steel
1	1Cr17Mn6Ni5N	12Cr17Mn6Ni5N	SUS201	201	S20100	STS201	1.4372	10Cr17Mn6Ni4N20	201-2	201
2	1Cr18Mn8Ni5N	12Cr18Mn9Ni5N	SUS202	202	S20200	STS202	1.4373	—	—	202
3	1Cr17Ni7	12Cr17Ni7	SUS301	301	S30100	STS301	1.4319	10Cr17Ni7	301	301
4	0Cr18Ni9	06Cr19Ni10	SUS304	304	S30400	STS304	1.4301	07Cr18Ni9	304	304
5	00Cr19Ni10	022Cr19Ni10	SUS304L	304L	S30403	STS304L	1.4306	02Cr18Ni11	304L	304L
6	0Cr19Ni9N	06Cr19Ni10N	SUS304N1	304N	S30451	STS304N1	1.4315	—	304N1	304N1
7	0Cr19Ni10NbN	06Cr19Ni9NbN	SUS304N2	XM21	S30452	STS304N2	—	—	304N2	304N2
8	00Cr18Ni10N	022Cr19Ni10N	SUS304LN	304LN	S30453	STS304LN	—	—	304LN	304LN
9	1Cr18Ni12	10Cr18Ni12	SUS305	305	S30500	STS305	1.4303	—	305	305
10	0Cr23Ni13	06Cr23Ni13	SUS309S	309S	S30908	STS309S	1.4833	—	309S	309S
11	0Cr25Ni20	06Cr25Ni20	SUS310S	310S	S31008	STS310S	1.4845	—	310S	310S
12	0Cr17Ni12Mo2	06Cr17Ni12Mo2	SUS316	316	S31600	STS316	1.4401	04Cr17Ni12Mo2	316	316
13	0Cr18Ni12Mo3Ti	06Cr17Ni12Mo2Ti	SUS316Ti	316Ti	S31635	—	1.4571	04Cr17Ni12MoTi20	316Ti	316Ti
14	00Cr17Ni14Mo2	022Cr17Ni12Mo2	SUS316L	316L	S31603	STS316L	1.4404	02Cr17Ni12Mo2	316L	316L
15	0Cr17Ni12Mo2N	06Cr17Ni12Mo2N	SUS316N	316N	S31651	STS316N	—	—	316N	316N
16	00Cr17Ni13Mo2N	022Cr17Ni13Mo2N	SUS316LN	316LN	S31653	STS316LN	1.4429	—	316LN	316LN
17	0Cr18Ni12Mo2Cu2	06Cr18Ni12Mo2Cu2	SUS316J1	—	—	STS316J1	—	—	316J1	316J1
18	00Cr18Ni14Mo2Cu2	022Cr18Ni14Mo2Cu2	SUS316J1L	—	—	STS316J1L	—	—	—	316J1L
19	0Cr19Ni13Mo3	06Cr19Ni13Mo3	SUS317	317	S31700	STS317	—	—	317	317
20	00Cr19Ni13Mo3	022Cr19Ni13Mo3	SUS317L	317L	S31703	STS317L	1.4438	—	317L	317L
21	0Cr18Ni10Ti	06Cr18Ni11Ti	SUS321	321	S32100	STS321	1.4541	04Cr18Ni10Ti20	321	321
22	0Cr18Ni11Nb	06Cr18Ni11Nb	SUS347	347	S34700	STS347	1.4550	04Cr18Ni10Nb40	347	347
Austenitic-Ferritic Stainless Steel (Duplex)
23	0Cr26Ni5Mo2	—	SUS329J1	329	S32900	STS329J1	1.4477	—	329J1	329J1
24	00Cr18Ni5Mo3Si2	022Cr19Ni5Mo3Si2N	SUS329J3L	—	S31803	STS329J3L	1.4462	—	329J3L	329J3L
Ferritic Stainless Steel
25	0Cr13Al	06Cr13Al	SUS405	405	S40500	STS405	1.4002	04Cr13	405	405
26	—	022Cr11Ti	SUH409	409	S40900	STS409	1.4512	—	409L	409L
27	00Cr12	022Cr12	SUS410L	—	—	STS410L	—	—	410L	410L
28	1Cr17	10Cr17	SUS430	430	S43000	STS430	1.4016	05Cr17	430	430
29	1Cr17Mo	10Cr17Mo	SUS434	434	S43400	STS434	1.4113	—	434	434
30	—	022Cr18NbTi	—	—	S43940	—	1.4509	—	439	439
31	00Cr18Mo2	019Cr19Mo2NbTi	SUS444	444	S44400	STS444	1.4521	—	444	444
Martensitic Stainless Steel
32	1Cr12	12Cr12	SUS403	403	S40300	STS403	—	—	403	403
33	1Cr13	12Cr13	SUS410	410	S41000	STS410	1.4006	12Cr13	410	410
34	2Cr13	20Cr13	SUS420J1	420	S42000	STS420J1	1.4021	20Cr13	420	420J1
35	3Cr13	30Cr13	SUS420J2	—	—	STS420J2	1.4028	30Cr13	420J2	420J2
36	7Cr17	68Cr17	SUS440A	440A	S44002	STS440A	—	—	440A	440A

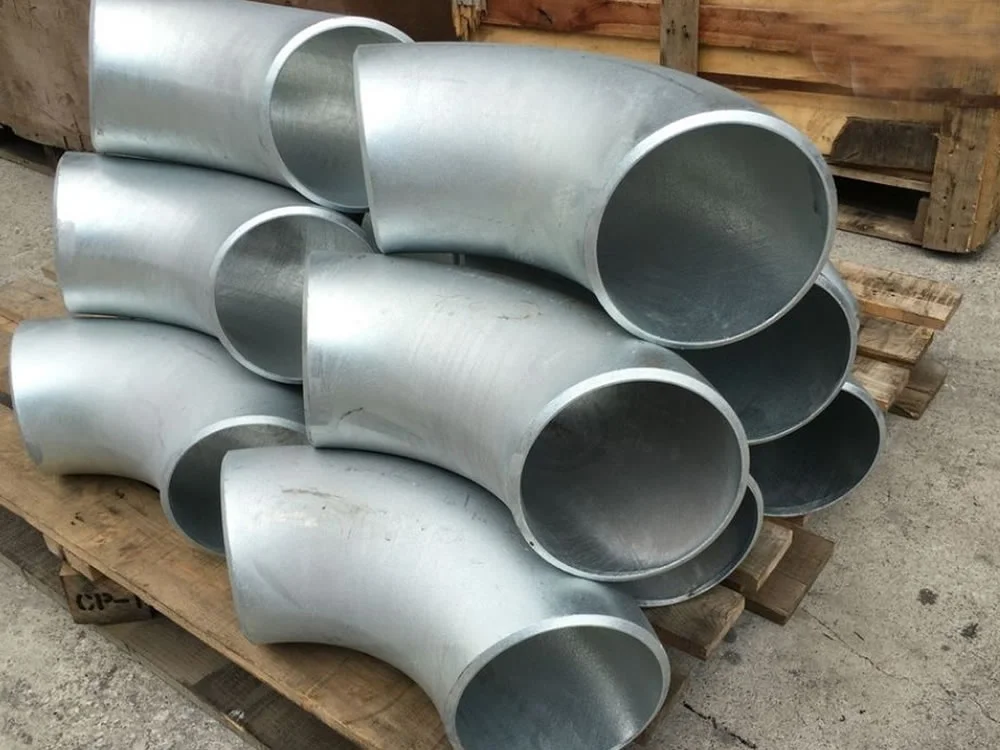

Stainless Steel Elbow

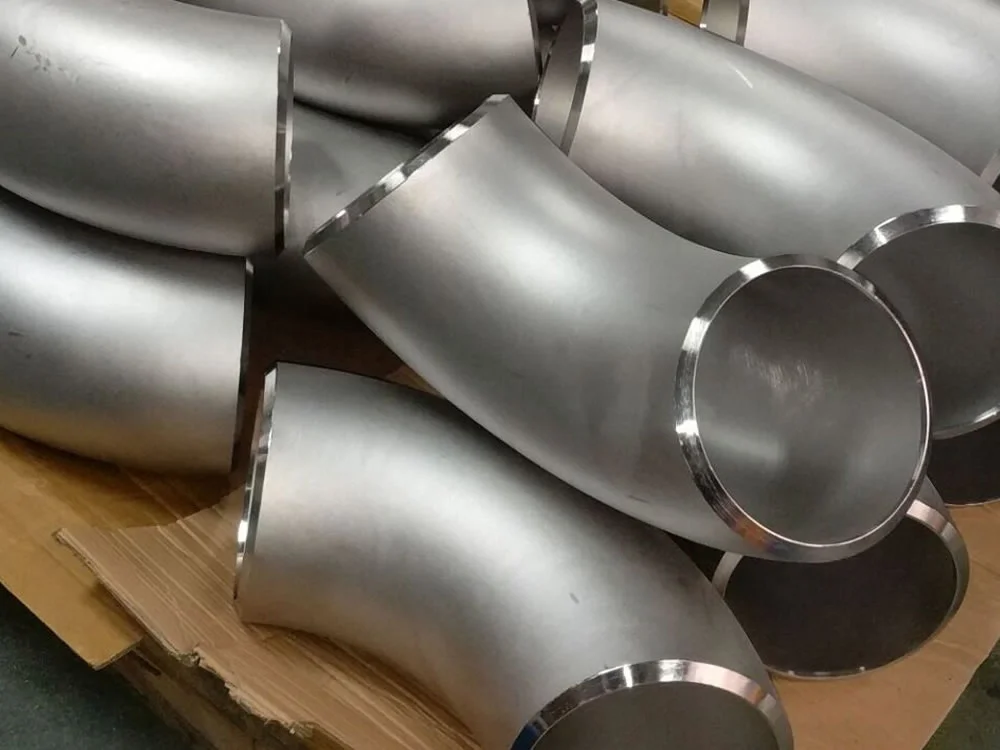

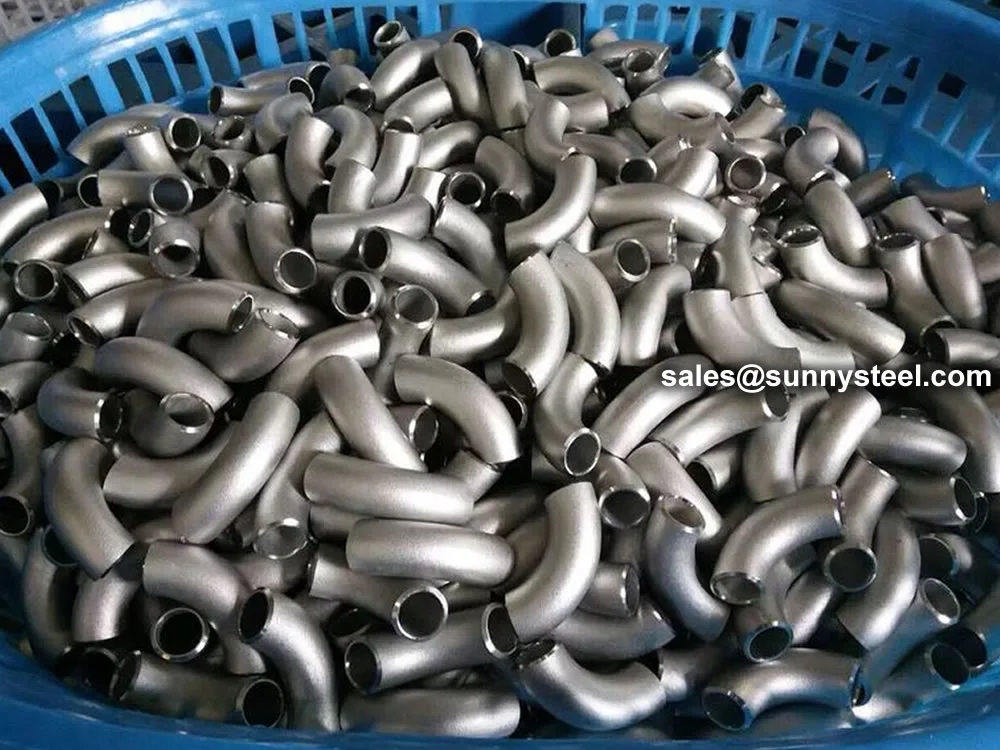

WP304 Stainless Elbow

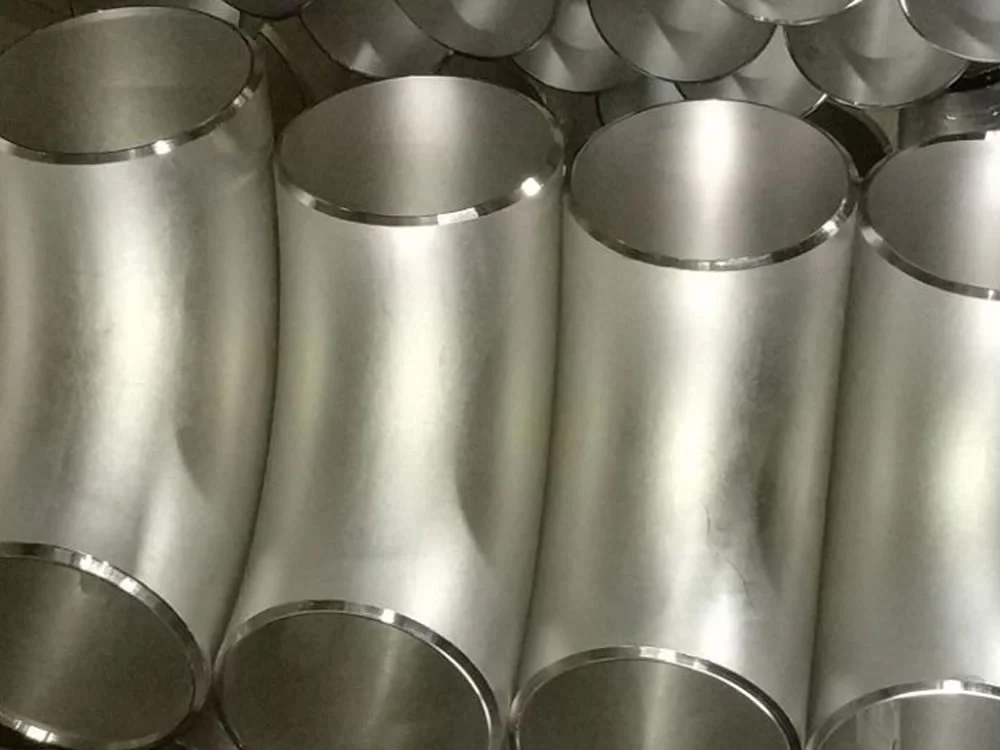

A403 WP316 stainless elbow
