Weldable Carbon Steel Pipes For Construction And Machinery
Jis g3101 ss400 steel pipes for structural applications, offering excellent weldability and moderate strength.
Weldable Carbon Steel Pipes For Construction And Machinery
Jis g3101 ss400 steel pipes for structural applications, offering excellent weldability and moderate strength. ideal for construction, machinery, and general piping with corrosion resistance.
JIS G3101 SS400 Steel Pipes are designed for general structural purposes, offering excellent weldability, moderate strength, and corrosion resistance. Conforming to the Japanese Industrial Standard (JIS G3101), these carbon steel pipes are widely used in construction piping, machinery, and general piping solutions across industries such as building construction, infrastructure, and manufacturing. The SS400 grade is known for its versatility and cost-effectiveness in structural applications.
Available in both seamless and welded forms (e.g., ERW or SAW), SS400 Steel Pipes are manufactured with outer diameters ranging from 21.3 mm to 610 mm and wall thicknesses from 2 mm to 60 mm. Lengths can be standard (6m, 12m) or customized (5-12m) to suit project requirements. The pipes are typically hot-rolled or cold-formed, with optional heat treatments like normalizing to improve mechanical properties. Their low carbon content ensures superior weldability, making them suitable for fabrication processes like bending, flanging, and welding.
The chemical composition of SS400, with carbon (≤0.30%), phosphorus (≤0.050%), and sulfur (≤0.050%), provides good formability and moderate corrosion resistance. These pipes undergo testing, including tensile, bending, and hydrostatic tests, to ensure compliance with JIS G3101 standards. Surface treatments such as black painting, galvanizing, or anti-corrosion coatings enhance durability, while plain, beveled, or threaded ends facilitate installation. SS400 pipes are ideal for low to medium-pressure applications, offering reliable performance in structural frameworks.
JIS G3101 SS400 Steel Pipes are commonly used in building frameworks, bridges, machinery components, and general piping systems. Compared to JIS G3454 (pressure piping) or JIS G3445 (machine structural tubes), SS400 pipes are optimized for structural integrity and weldability rather than high-pressure or precision applications. Their ability to resist pipeline wear and environmental corrosion makes them a preferred choice for cost-effective structural solutions.
These pipes address challenges like structural stability, corrosion, and fabrication complexity in construction and industrial systems. Their robust design, compliance with JIS G3101, and versatility make them a dependable choice for engineers seeking durable structural carbon steel pipes for diverse applications, ensuring safety, efficiency, and longevity.

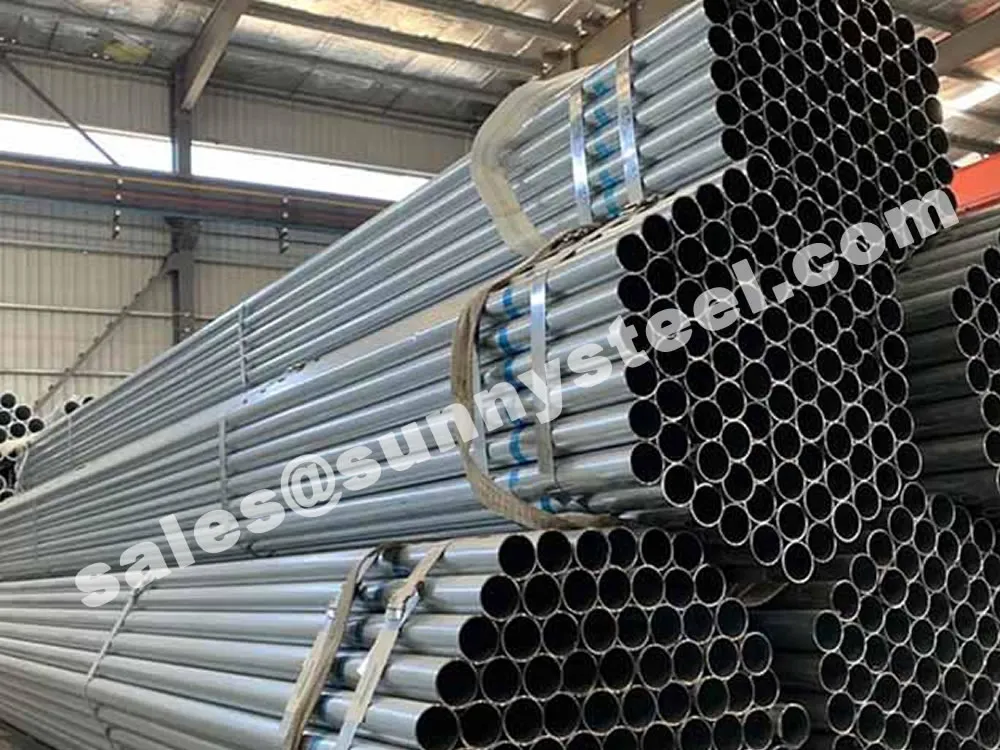

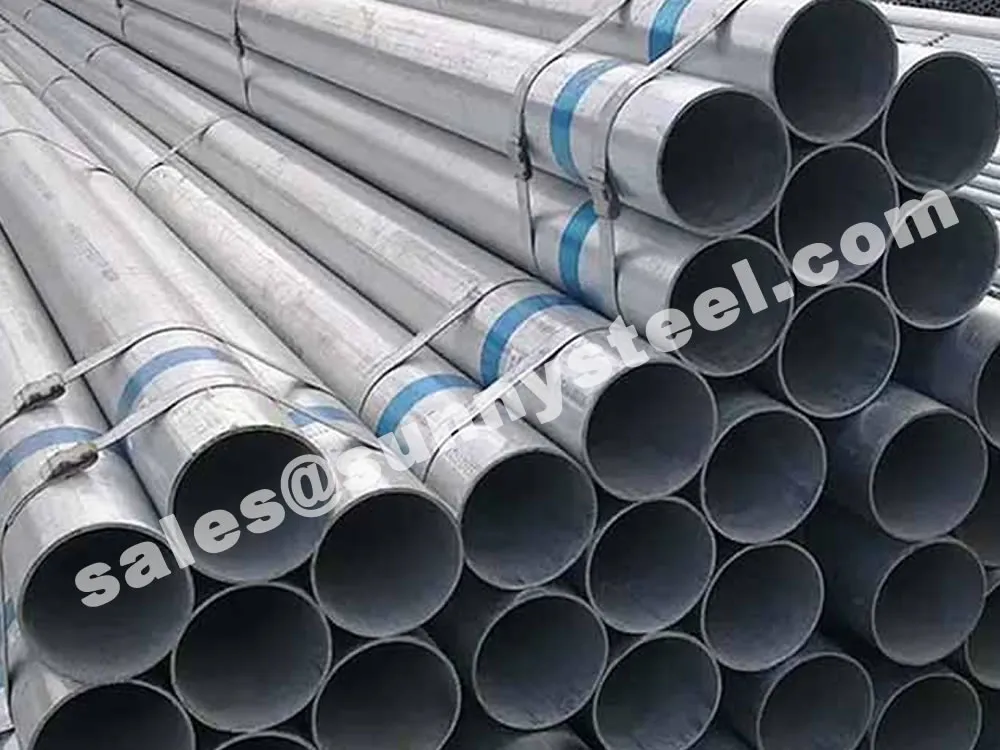

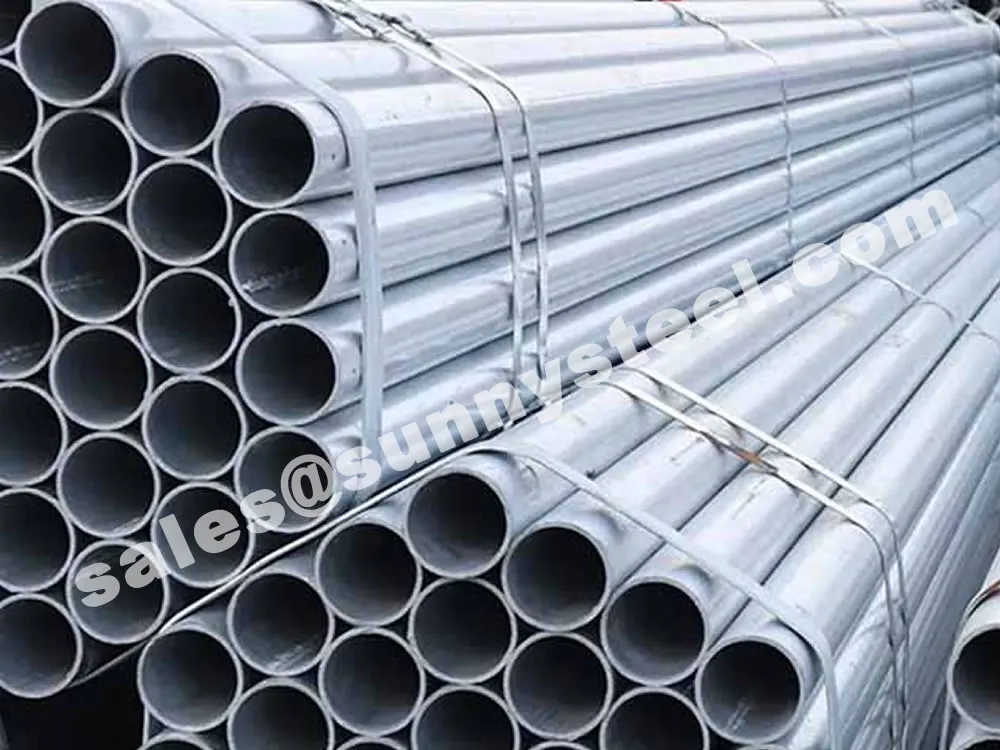

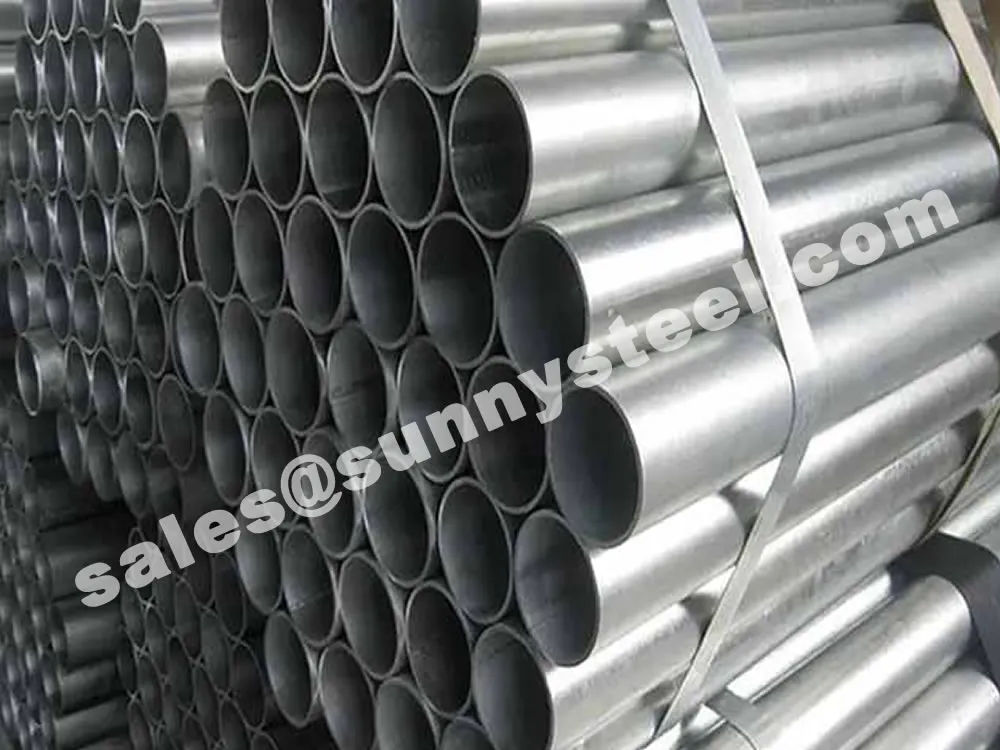

JIS SS400 hot-dip galvanized steel pipe is a structural carbon steel pipe produced in accordance with the Japanese Industrial Standard (JIS), where SS400 is the grade in the standard, indicating that the yield strength of the steel pipe is approximately 400MPa.
Low carbon content ensures easy welding and fabrication.
Provides reliable structural integrity for construction and machinery.
Moderate corrosion resistance with protective coatings.
Affordable material reduces overall project costs.
Suitable for construction, machinery, and general piping.
Certified with rigorous testing to meet JIS G3101 standards.
| Grade | C (% max) | Si (% max) | Mn (% max) | P (% max) | S (% max) |
|---|---|---|---|---|---|
| SS400 | 0.30 | - | - | 0.050 | 0.050 |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa min) | Elongation (% min) |
|---|---|---|---|
| SS400 | 400-510 | 245 (t≤16mm), 235 (t>16mm) | 17 (t≤5mm), 21 (t>5mm) |
| Feature | JIS G3101 SS400 | ASTM A36 | EN S275JR |
|---|---|---|---|
| Material Type | Carbon Steel | Carbon Steel | Carbon Steel |
| Temperature Range | Ambient | Ambient | Ambient |
| Tensile Strength (MPa) | 400–510 | 400–550 | 410–560 |
| Yield Strength (MPa) | ≥245 (t≤16mm) | ≥250 | ≥275 (t≤16mm) |
| Corrosion Resistance | Moderate (with coatings) | Moderate (with coatings) | Moderate (with coatings) |
| Dimensional Tolerances | OD: ±1%, WT: ±12.5% | OD: ±1%, WT: ±12.5% | OD: ±1%, WT: ±12.5% |
| Fabrication Options | Welding, bending, flanging | Welding, bending, flanging | Welding, bending, flanging |
| Applications | Construction, machinery, piping | Construction, structural shapes | Construction, structural sections |
| Key Advantage | Excellent weldability | Wide availability | Balanced strength and ductility |
| High-Pressure Suitability | Not suitable | Not suitable | Not suitable |
Explore JIS G3101 SS400 steel pipes with targeted long-tail keywords, covering specifications, applications, manufacturing, procurement, and dimensions for structural purposes.
Note: JIS G3101 SS400 covers carbon steel pipes for general structural purposes. For detailed specifications, refer to the JIS G3101 standard or contact a certified supplier.
JIS G3429 Seamless Tubes are critical for high-pressure gas cylinders, ensuring safe storage and transportation of CNG, hydrogen, and industrial gases.
Safe storage for compressed natural gas in automotive applications.
High-pressure storage for hydrogen in clean energy systems.
Stores oxygen, nitrogen, and other gases for industrial use.
Ensures safe transport of high-pressure gases in cylinders.
Supports high-pressure gas storage in renewable energy.
Reliable for oxygen and medical gas storage in healthcare.
Jis g3455 carbon steel pipes, designed for high-pr...
Jis g3454 stpg38 seamless pipes for pressure servi...
Jis g3458 alloy steel pipes, designed for high-tem...

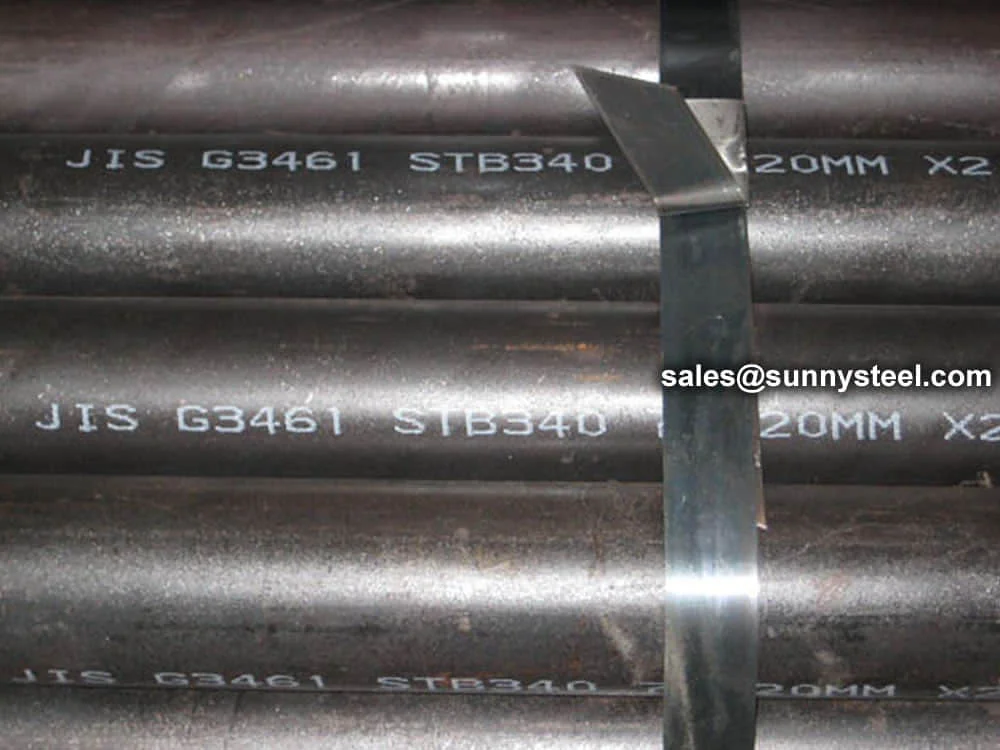

Jis g3461 carbon steel tubes offer superior streng...

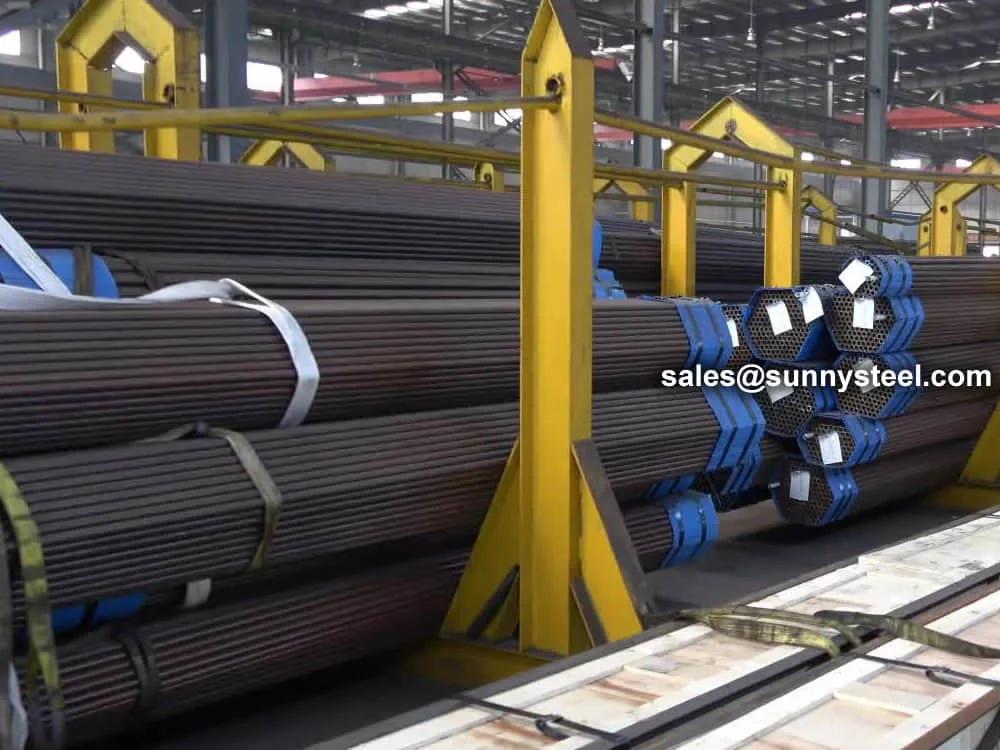

Jis g3462 alloy steel tubes are designed for high-...
